VR Map: Using OSM Data In a WebVR Environment

Simple GeoData Visualization with A-Frame

Robert Kaiser

Slides: https://slides.kairo.at/sotm2019/

Created for a presentation at State of the Map 2019 in Heidelberg, Germany.
Written in HTML 5 with CSS 3 and JavaScript.
Navigation via links on all slides, via access keys (e.g. "n"/Alt+Shift+N for "next") or back/forward arrow keys
Contents
04/2018-09/2019 Robert Kaiser - "Mozilla", "Firefox" and their logos are trademarks of Mozilla Foundation.

Robert Kaiser - KaiRo

kairo@kairo.at / home.kairo.at
KaiRo on OSM
Mozilla Tech Speaker
Based in Vienna, Austria
Not on most major social networks
But on Diaspora*, Mozillians, Telegram, LinkedIn, KaiRo-at at GitHub

Objectives

Cross-Device nature of WebVR/WebXR
Ease of use of A-Frame
Ability to use OpenStreetMap data

WebVR & WebXR

WebVR: Virtual Reality powered by Web technologies
Evolving into WebXR Device API - Mixed Reality (Virtual + Augmented Reality)
Open Standard (proposal), in concert with WebGL, WebAudio and Gamepad APIs
Firefox: Windows (55+) & MacOS X (64+) release, Linux in development
Chrome experimental; support on stand-alone headset browsers

VR Map

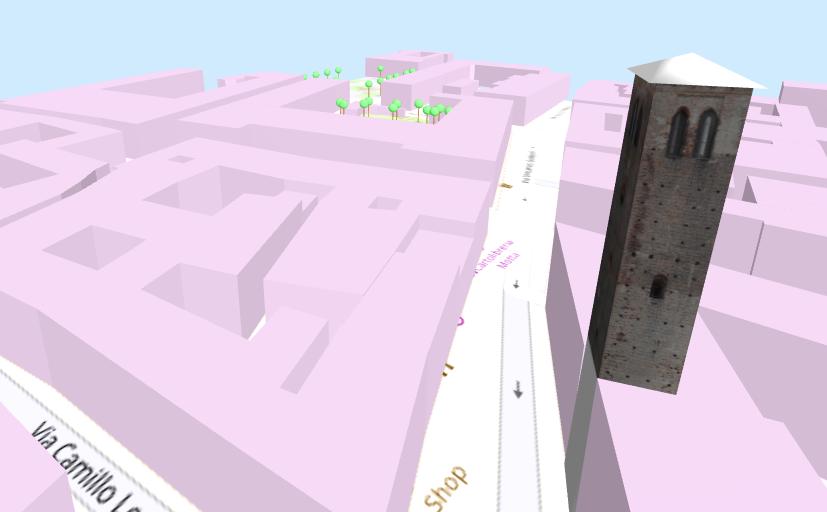

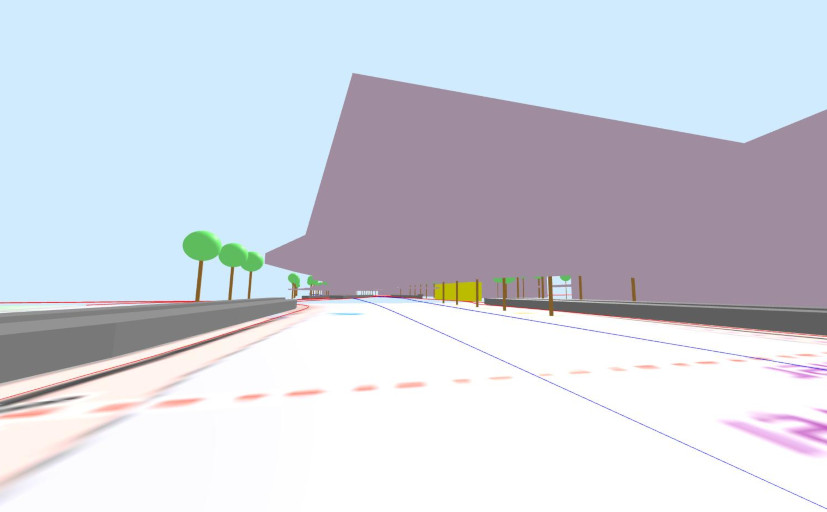

Demo for WebVR with live OpenStreetMap data

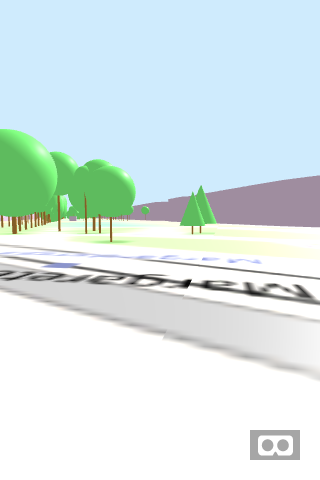

Usable in 2D mode on any modern browser
Supports headset + controller where WebVR is supported
Using A-Frame (see later)
Simple: Currently ~80 lines HTML, ~600 lines JS

Code Basics

The world is flat (in two ways)!
Ground tiles using Mercator projection, "Mapnik" rendering from OSM via KaiRo's tile caching server
Trees and buildings: live OSM data via Overpass API
Camera/controller setup to support multiple devices for navigating the scene
Built with Mozilla-orginated A-Frame library

A-Frame - XR Made Simple

Example:

<a-scene>
  <a-sphere position="0 1.25 -1" radius="1.25" color="#EF2D5E"></a-sphere>
  <a-cube position="-1 0.5 1" rotation="0 0 0" …>
    <a-animation attribute="rotation" … to="0 360 0"></a-animation>
  </a-cube>
  <a-cylinder position="1 0.75 1" …></a-cylinder>
  <a-plane …></a-plane>
  <a-sky color="#ECECEC"></a-sky>
</a-scene>

edit/view - More at aframe.io

Code Details

index.html: JS includes, start dialog, scene, camera/controller rig
map.js: variables, load handler, fetch from Overpass API
conversions.js: coordinate conversions
position-limit.js: A-Frame component for keeping position above ground
tiles.js, trees.js, buildings.js: load/draw the 3 types of objects
KaiRo-at/vrmap at GitHub

Objectives - Recap

Cross-Device nature of WebVR/WebXR
Ease of use of A-Frame
Ability to use OpenStreetMap data
